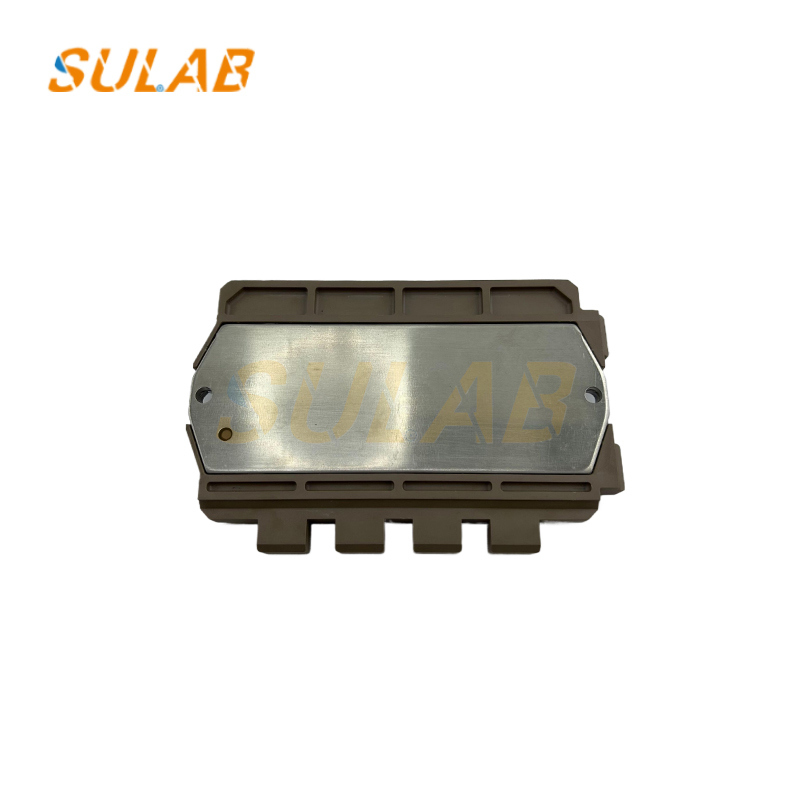

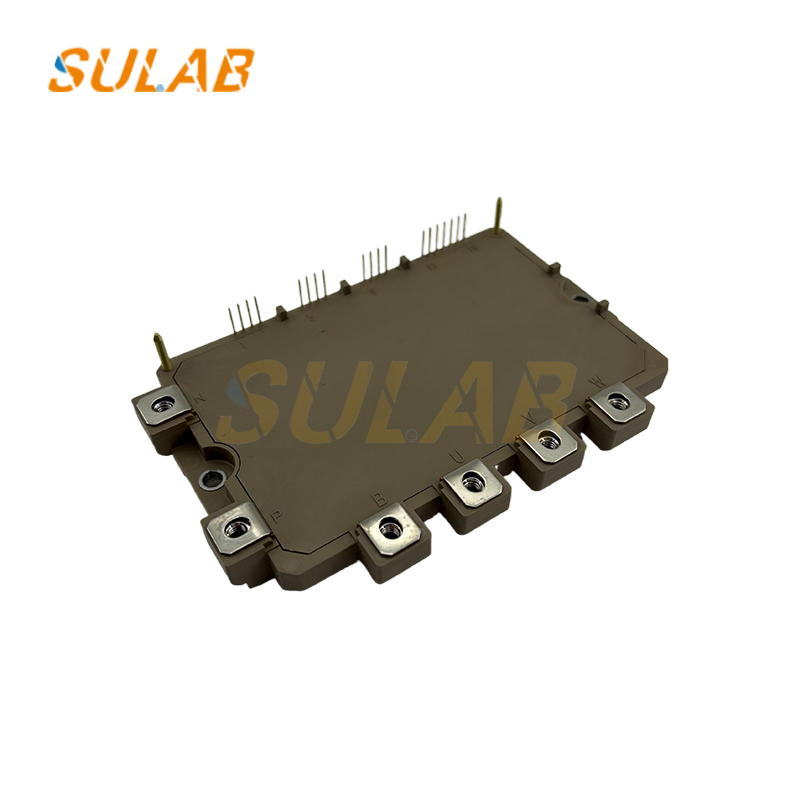

Fuji Electric High-Speed Switching High-Power IGBT Module for Elevator Drive with Variable-Frequency Control

An IGBT (Insulated Gate Bipolar Transistor) module is a core component of modern power electronics. It functions as a high-speed, high-power electronic switch that controls the flow of electrical current.

• Manufacturer: Fuji Electric

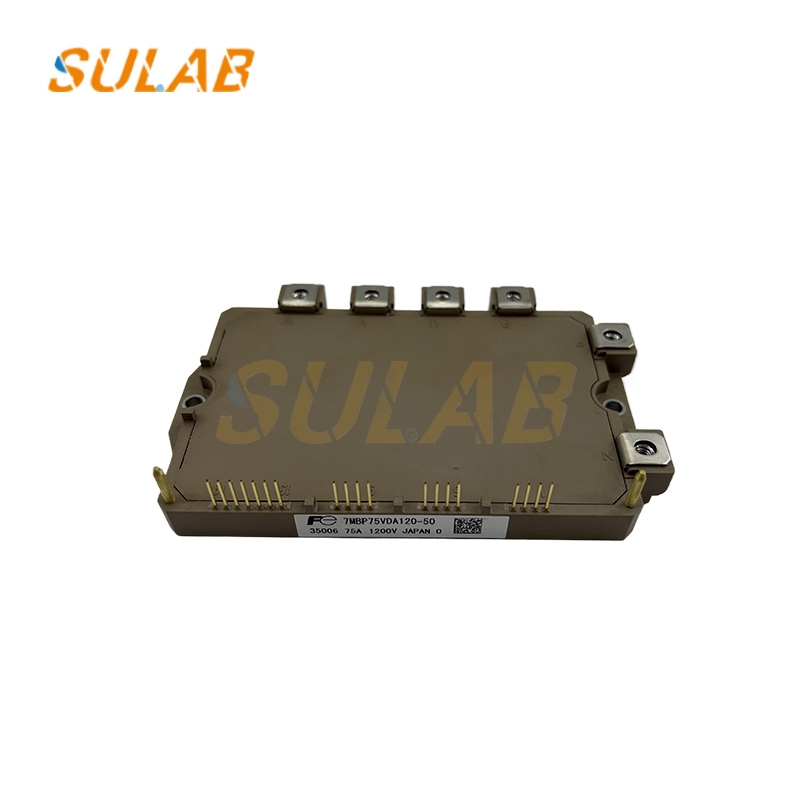

• Model: 7MBP75VDA120-50
• Core Function: The module takes DC (direct current) power and converts it into variable-frequency and variable-voltage AC (alternating current). By switching on and off thousands of times per second, it can precisely control the speed and torque of an electric motor.

In the elevator industry, this IGBT module is the heart of the elevator drive (inverter). The drive uses the module to regulate the main traction motor, enabling:

• Smooth Operation: Ensures the elevator car starts, accelerates, runs, and decelerates smoothly without any jolts or sudden movements.
• Energy Efficiency: Precise motor control minimizes energy consumption.
• Accurate Positioning: Allows for accurate and smooth stopping at each floor.

The 7MBP75VDA120-50 is a critical power module in an elevator's VFD, essential for safe, smooth, and efficient operation.
